dali controller

  • Latest DALI standard protocol IEC62386.
  • Support 1-4 channels control.
  • DALI bus supply power.
  • Addressable via dip switches.
  • Support scene, group, unicast, broadcast mode.

Certification:   CCC   TUV   RCM   CB   CE   ENEC   UL   FCC   KC   EAC   DALI-1    DALI-2    DT8
DALI Master Controller
  • DALI RGB touch panel EDT3
    Output signal DALI
    Power Supply DALI power
    Dimming key RGB control
    Power consumption < 6mA@16V
    working temperature -30 ~55 ℃
    Dimension L86×W86×H37(mm)
    Package Size L113×W112×H50(mm)
    Weight (G.W) 240g

  • DALI CT touch panel EDT2
    Output signal DALI
    Power Supply DALI power
    Dimming key CT control
    Power consumption < 6mA@16V
    working temperature -30 ~55 ℃
    Dimension L86×W86×H37(mm)
    Package Size L113×W112×H50(mm)
    Weight (G.W) 240g

  • DALI Dimming touch panel EDT1
    Output signal DALI
    Power Supply DALI power
    Dimming key Dimming control
    Power consumption < 6mA@16V
    working temperature -30 ~55 ℃
    Dimension L86×W86×H37(mm)
    Package Size L113×W112×H50(mm)
    Weight (G.W) 240g

  • DALI Push Switch LT-424
    Interface Protocol DALI (IEC62386)
    Power supply DALI bus
    Signal current ≤8mA(Static)
    Work temp. -30℃~ 55℃
    Dimension L48×W28×H14(mm)
    Package size L50×W40×H30(mm)
    Weight (G.W.) 32g

  • DALI knob panel E6-DA1
    Power supply DALI power
    Output signal DALI
    Dimming style Spin
    Static current 6mA@16V
    Standby current 4mA@16V
    Working temperature -20℃~55℃
    Dimensions L86×W86×H50(mm)
    Package Size L106×W106×H60(mm)
    Weight(G.W.) 235g

  • DALI Bus Power supply DALI-PS-DIN
    Input Voltage: 100-240VAC 50/60Hz
    Input Current: 115VAC/≤0.09A 230VAC/≤0.05A
    Out Current: 200mA
    Work Current: 15V
    working temperature -30℃~55℃
    Dimension L112×W35×H67(mm)
    Package Size L114×W37×H70(mm)
    Weight (G.W) 115g±10g

  • DALI touch panel EDA1
    Output signal DALI
    Power Supply DALI power
    Dimming key 1CH control
    Static current 6mA@16V
    Standby current 4mA@16V
    working temperature -30 ~55 ℃
    Dimension L86×W86×H36(mm)
    Package Size L113×W112×H50(mm)
    Weight (G.W) 200g

  • DALI touch panel EDA2
    Output signal DALI
    Power Supply DALI power
    Dimming key 2CH control
    Static current 6mA@16V
    Standby current 4mA@16V
    working temperature -30 ~55 ℃
    Dimension L86×W86×H36(mm)
    Package Size L113×W112×H50(mm)
    Weight (G.W) 200g

  • DALI touch panel EDA3
    Output signal DALI
    Power Supply DALI power
    Dimming key 3CH control
    Static current 6mA@16V
    Standby current 4mA@16V
    working temperature -30 ~55 ℃
    Dimension L86×W86×H36(mm)
    Package Size L113×W112×H50(mm)
    Weight (G.W) 200g

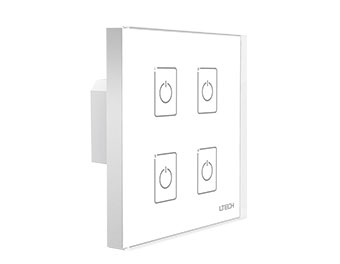

  • DALI touch panel EDA4
    Output signal DALI
    Power Supply DALI power
    Dimming key 4CH control
    Static current 6mA@16V
    Standby current 4mA@16V
    working temperature -30 ~55 ℃
    Dimension L86×W86×H36(mm)
    Package Size L113×W112×H50(mm)
    Weight (G.W) 200g
