LTECH Intelligent dimmable led driver have excellent performance:

  • T-PWM digital dimming, maintains CRI(color rendering index).
  • 0~100% flicker-free, High Frequency Exemption.
  • Dimming range from 0-100%, LED start at 0.01% possible.
  • Multi-current & wide voltage, suitable for different power LED.
  • Over temp. / Over voltage / Over load / Short circuit protection,recover automatically.
Adopt revolutionary T-PWM deep dimming technology

Certification:   CCC   TUV   RCM   CB   CE   ENEC   UL   FCC   KC   EAC   UKCA   DALI-1    DALI-2    DT8
CC DALI Dimmable Driver
  • 12W 100-500mA NFC CC DALI DT6 LED driver SE-12-100-500-W1D
    Rubycon capacitor
    Dimming Interface: DALI DT6
    DC Voltage Range: 120-300Vdc
    AC Voltage Range: 100-240Vac
    Input Voltage: 115Vac/230Vac
    Power Factor:  PF>0.95/115Vac , PF>0.90/230Vac, at full load
    Efficiency: 84%
    Fluctuation Level: No visible flicker/High frequency exemption level
    Output Voltage: 9-42Vdc
    Output Current: 100-500mA
    Output Power: 0.9W~12.15W
    Dimming Range: 0~100%, down to 0.01%
    Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UL,BIS,DALI-2
    Warranty: 5 years(Rubycon capacitor)

  • 12W 100-500mA NFC CC DALI DT6/DT8 tunable white LED driver SE-12-100-500-W2D
    Rubycon capacitor
    Dimming Interface: DALI DT6/DT8
    DC Voltage Range: 120-300Vdc
    AC Voltage Range: 100-240Vac
    Input Voltage: 115Vac/230Vac
    Power Factor:  PF>0.95/115Vac , PF>0.90/230Vac, at full load
    Efficiency: 84%
    Fluctuation Level: No visible flicker/High frequency exemption level
    Output Voltage: 9-42Vdc
    Output Current: 100-500mA
    Output Power: 0.9W~12.15W
    Dimming Range: 0~100%, down to 0.01%
    Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UL,BIS,DALI-2
    Warranty: 5 years(Rubycon capacitor)

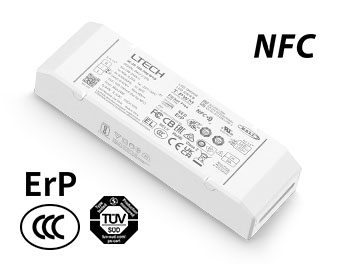

  • 20W 100-700mA NFC CC DALI DT6 LED driver SE-20-100-700-W1D
    Rubycon capacitor
    Dimming Interface: DALI DT6
    DC Voltage Range: 120-300Vdc
    AC Voltage Range: 100-240Vac
    Input Voltage: 115Vac/230Vac
    Power Factor:  PF>0.95/115Vac , PF>0.90/230Vac, at full load
    Efficiency: 86%
    Fluctuation Level: No visible flicker/High frequency exemption level
    Output Voltage: 9-42Vdc
    Output Current: 100-700mA
    Output Power: 0.9W~20.4W
    Dimming Range: 0~100%, down to 0.01%
    Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UL,BIS,DALI-2
    Warranty: 5 years(Rubycon capacitor)

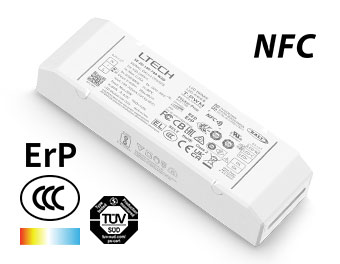

  • 20W 100-700mA NFC CC DALI DT6/DT8 tunable white LED driver SE-20-100-700-W2D
    Rubycon capacitor
    Dimming Interface: DALI DT6/DT8
    DC Voltage Range: 120-300Vdc
    AC Voltage Range: 100-240Vac
    Input Voltage: 115Vac/230Vac
    Power Factor:  PF>0.95/115Vac , PF>0.90/230Vac, at full load
    Efficiency: 86%
    Fluctuation Level: No visible flicker/High frequency exemption level
    Output Voltage: 9-42Vdc
    Output Current: 100-700mA
    Output Power: 0.9W~20.4W
    Dimming Range: 0~100%, down to 0.01%
    Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UL,BIS,DALI-2
    Warranty: 5 years(Rubycon capacitor)

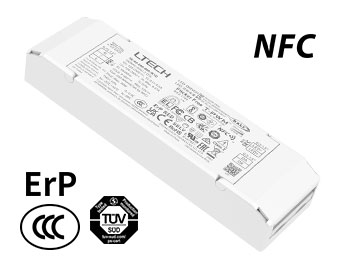

  • 30W 200-800mA NFC CC DALI DT6 LED driver SE-30-200-800-W1D
    Rubycon capacitor
    Dimming Interface: DALI DT6
    DC Voltage Range: 120-300Vdc
    AC Voltage Range: 100-240Vac
    Input Voltage: 115Vac/230Vac
    Power Factor:  PF>0.9/230Vac, at full load
    Efficiency: 87%
    Fluctuation Level: No visible flicker/High frequency exemption level
    Output Voltage: 9-42Vdc
    Output Current: 200-800mA
    Output Power: 1.8W-30W
    Dimming Range: 0~100%, down to 0.01%
    Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,CUL,BIS,UKCA,FCC,DALI-2
    Warranty: 5 years(Rubycon capacitor)
  • 40W 300-1050mA NFC CC DALI DT6 LED driver SE-40-300-1050-W1D
    Rubycon capacitor
    Dimming Interface: DALI DT6
    DC Voltage Range: 120-300Vdc
    AC Voltage Range: 100-240Vac
    Input Voltage: 115Vac/230Vac
    Power Factor:  PF>0.9/230Vac, at full load
    Efficiency: 88%
    Fluctuation Level: No visible flicker/High frequency exemption level
    Output Voltage: 9-42Vdc
    Output Current: 300-1050mA
    Output Power: 2.7W-40W
    Dimming Range: 0~100%, down to 0.01%
    Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,CUL,BIS,UKCA,FCC,DALI-2
    Warranty: 5 years(Rubycon capacitor)

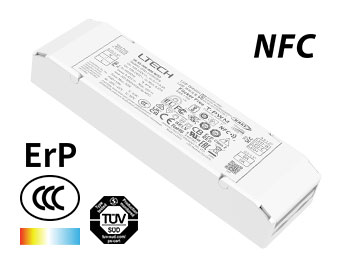

  • 30W 200-800mA NFC CC DALI DT6/DT8 tunable white LED driver SE-30-200-800-W2D
    Rubycon capacitor
    Dimming Interface: DALI DT6/DT8
    DC Voltage Range: 120-300Vdc
    AC Voltage Range: 100-240Vac
    Input Voltage: 115Vac/230Vac
    Power Factor:  PF>0.9/230Vac, at full load
    Efficiency: 87%
    Fluctuation Level: No visible flicker/High frequency exemption level
    Output Voltage: 9-42Vdc
    Output Current: 200-800mA
    Output Power: 1.8W-30W
    Dimming Range: 0~100%, down to 0.01%
    Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UL,BIS,UKCA,DALI-2
    Warranty: 5 years(Rubycon capacitor)

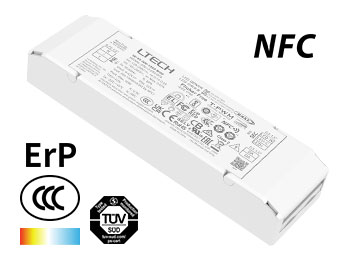

  • 40W 300-1050mA NFC CC DALI DT6/DT8 tunable white LED driver SE-40-300-1050-W2D
    Rubycon capacitor
    Dimming Interface: DALI DT6/DT8
    DC Voltage Range: 120-300Vdc
    AC Voltage Range: 100-240Vac
    Input Voltage: 115Vac/230Vac
    Power Factor:  PF>0.9/230Vac, at full load
    Efficiency: 88%
    Fluctuation Level: No visible flicker/High frequency exemption level
    Output Voltage: 9-42Vdc
    Output Current: 300-1050mA
    Output Power: 2.7W-40W
    Dimming Range: 0~100%, down to 0.01%
    Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UL,BIS,UKCA,DALI-2
    Warranty: 5 years(Rubycon capacitor)

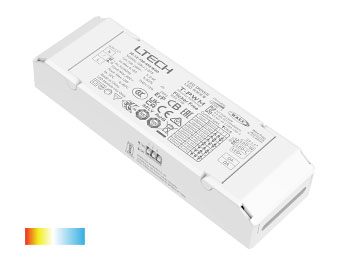

  • 12W 100-450mA CC DALI-2 DT6/DT8 tunable white LED driver SE-12-100-450-W2D
    Rubycon capacitor
    Dimming Interface: DALI DT6/DT8
    DC Voltage Range: 120-300Vdc
    AC Voltage Range: 100-240Vac
    Input Voltage: 115Vac/230Vac
    Power Factor:  PF>0.9/230Vac, at full load
    Efficiency: 88%
    Fluctuation Level: No visible flicker/High frequency exemption level
    Output Voltage: 9-42Vdc
    Output Current: 300-1050mA
    Output Power: 2.7W-40W
    Dimming Range: 0~100%, down to 0.01%
    Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UL,BIS,UKCA,DALI-2
    Warranty: 5 years(Rubycon capacitor)
    Sec. output:

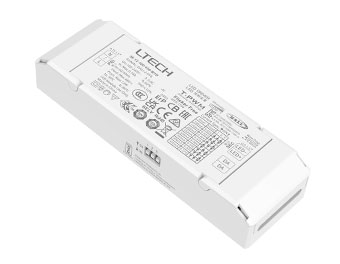

  • 12W 100-450mA CC DALI-2 DT6 LED driver SE-12-100-450-W1D
    Rubycon capacitor
    Dimming Interface: DALI DT6
    Input Voltage: 100-240Vac
    Power Factor:  PF>0.9C/230Vac , at full load PF>0.95C/115Vac , at full load
    Efficiency: >82%@450mA
    Fluctuation Level: No visible flicker/High frequency exemption level
    Output Voltage: 9-42Vdc
    Output Current: 100-450mA
    Output Power: 0.9W-12W
    Dimming Range: 0~100%, down to 0.01%
    Certification: CCC,TUV,CB,CE,KC,RCM,ENEC,UKCA,EAC
    Warranty: 5 years
    Sec. output:
    Pout(Max.) Vout(DC) Constant(DC)
    0.9-4.2W 9-42V 100mA
    1.35-6.3W 9-42V 150mA
    1.8-8.4W 9-42V 200mA
    2.25-10.5W 9-42V 250mA
    2.7-12W 9-40V 300mA
    3.15-11.9W 9-34V 350mA
    3.6-12W 9-30V 400mA
    4.05-12.15W 9-27V 450mA

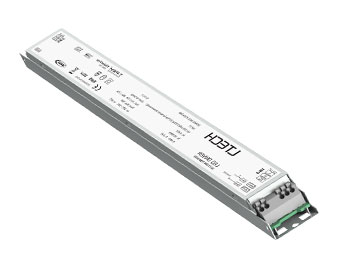

  • 75W 500-1750mA CC DALI-2 Programmable Driver LU-75-500-1750-U1D2
    Rubycon capacitor
    Dimming Interface: DALI-2, Push DIM
    Input Voltage: 100-240/277Vac (277Vac for North America only)
    Power Factor:  PF>0.97/115Vac; PF>0.95/230Vac; PF>0.9/277Vac
    Efficiency: 89%
    Fluctuation Level: No video flicker / High frequency exemption assessment level.
    Output Voltage: 10-54Vdc
    Output Current: Max. 1.75A
    Output Power: 5-75W
    Dimming Range: 0~100%, down to 0.1%
    Certification: CE,ROHS,UL,FCC
    Warranty: 5 years

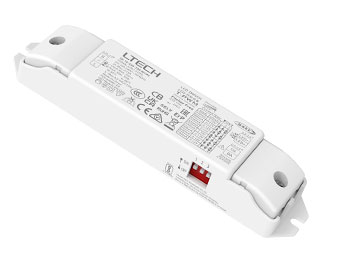

  • 10W 350-700mA CC DALI Driver SE-10-350-700-W1D
    Rubycon capacitor
    Dimming Interface: DALI
    Input Voltage: 100-240Vac
    Power Factor:  PF>0.95/115Vac , PF>0.80/230Vac,at full load
    Efficiency: 75%
    Fluctuation Level: No video flicker / High frequency exemption level.
    Output Voltage: 2-12Vdc
    Output Current: 350-700mA
    Output Power: 0.7W~8.4W
    Dimming Range: 0~100%, 0.01% dimming depth.
    Certification: CCC,TUV,RCM,BIS,CB,CE,ROHS,DALI,UKCA
    Warranty: 5 years
    Sec. output:
    Pout(Max.) Vout(DC) Constant(DC)
    0.7-4.2W 2-12V 350mA
    0.8-4.8W 2-12V 400mA
    0.9-5.4W 2-12V 450mA
    1-6W 2-12V 500mA
    1.1-6.6W 2-12V 550mA
    1.2-7.2W 2-12V 600mA
    1.3-7.8W 2-12V 650mA
    1.4-8.4W 2-12V 700mA
  • 15W 150-700mA(100-240Vac) DALI-15-150-700-F1A1
    Dimming Interface: DALI, Push Dim
    Input Voltage: 100-240Vac, 127-250Vdc (Push Dim is unsupported for DC input)
    Power Factor:  115Vac>0.98,230Vac>0.9
    Efficiency: >82%
    Fluctuation Level: Almost flicker-free / High frequency exemption assessment level.
    Output Voltage: 10-42Vdc
    Output Current: 150-700mA
    Output Power: 1.5W~15W
    Dimming Range: 0~100%, dimming depth: 0.01%
    Certification: CCC,CE,ROHS
    Warranty: 3 years
    Sec. output:
    Pout(Max.) Vout(DC) Constant(DC)
    1.5W-6.3W 10-42V 150mA
    2W-8.4W 10-42V 200mA
    3W-12.6W 10-42V 300mA
    3.5W-14.7W 10-42V 350mA
    5W-15W 10-30V 500mA
    5.5W-14.85W 10-27V 550mA
    6.5W-14.95W 10-23V 650mA
    7W-15.05W 10-21.5V 700mA

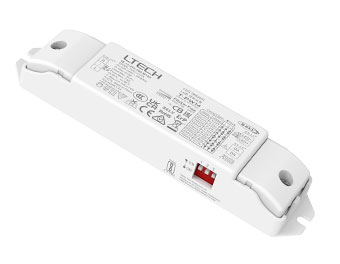

  • 12W 350-700mA CC DALI Driver SE-12-350-700-W1D
    Rubycon capacitor
    Dimming Interface: DALI
    Input Voltage: 100-240Vac
    Power Factor:  PF>0.97/115Vac , PF>0.85/230Vac, at full load
    Efficiency: 81%
    Fluctuation Level: No video flicker / High frequency exemption level.
    Output Voltage: 10-24Vdc
    Output Current: 350-700mA
    Output Power: 3.5W~12W
    Dimming Range: 0~100%, 0.01% dimming depth.
    Certification: CCC,TUV,RCM,BIS,CB,CE,ROHS,DALI,UKCA
    Warranty: 5 years
    Sec. output:
    Pout(Max.) Vout(DC) Constant(DC)
    3.5-8.4W 10-24V 350mA
    4-9.6W 10-24V 400mA
    4.5-10.8W 10-24V 450mA
    5-12W 10-24V 500mA
    5.5-12.1W 10-22V 550mA
    6-12W 10-20V 600mA
    6.5-12W 10-18.5V 650mA
    7-12W 10-17V 700mA

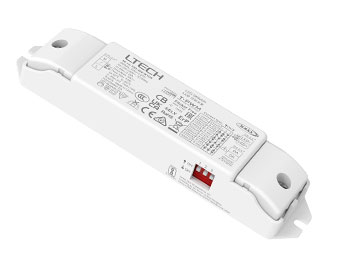

  • 12W 100-400mA CC DALI Driver SE-12-100-400-W1D
    Rubycon capacitor
    Dimming Interface: DALI
    Input Voltage: 100-240Vac
    Power Factor:  PF>0.97/115Vac , PF>0.85/230Vac, at full load
    Efficiency: 82%
    Fluctuation Level: No video flicker / High frequency exemption level.
    Output Voltage: 10-42Vdc
    Output Current: 100-400mA
    Output Power: 1W~12W
    Dimming Range: 0~100%, 0.01% dimming depth.
    Certification: CCC,TUV,RCM,BIS,CB,CE,ROHS,DALI,UKCA
    Warranty: 5 years
    Sec. output:
    Pout(Max.) Vout(DC) Constant(DC)
    1-4.2W 10-42V 100mA
    1.5-6.3W 10-42V 150mA
    2-8.4W 10-42V 200mA
    2.5-10.5W 10-42V 250mA
    3-12W 10-40V 300mA
    3.5-12W 10-34V 350mA
    4-12W 10-30V 400mA
  • 25W 150-900mA CC DALI Driver DALI-25-150-900-U1P1
    Rubycon capacitor
    Dimming Interface: DALI, Push Dim
    Input Voltage: 100-277Vac ±10%, (Max. 90-305Vac)
    Power Factor:  PF>0.97/115Vac, PF>0.93/230Vac, PF>0.85/277Vac(full load)
    Efficiency: 85%
    Fluctuation Level: Almost flicker-free / High frequency exemption level.
    Output Voltage: 10-54Vdc
    Output Current: 150-900mA
    Output Power: 1.5W~25W
    Dimming Range: 0~100%, 0.01% dimming depth.
    Certification: UL,FCC,DALI,CE
    Warranty: 5 years
    Sec. output:
    Pout(Max.) Vout(DC) Constant(DC)
    1.5W-8.1W 10-54V 150mA
    2.5W-13.5W 10-54V 250mA
    3W-16.2W 10-54V 300mA
    3.5W-18.9W 10-54V 350mA
    5W-25W 10-50V 500mA
    6W-25.2W 10-42V 600mA
    7W-25.2W 10-36V 700mA
    9W-25.2W 10-28V 900mA
  • DALI-2 Special for magnetic CC DT8 tunable white LED driver MT-300-D2D1
    Dimming Interface:  DALI
    Input Voltage:  48Vdc±5%(No polarity)
    Efficiency (Typ): 94%
    Fluctuation Level: No video flicker / High frequency exemption level.
    Output Voltage: 10~42Vdc
    Output Current: 100~300mA
    Output Power: 1W~12.6W (Default is 12.6W)
    Dimming Range: 0~100%,down to 0.1%
    Certification: CE,ROHS,FCC
    Warranty: 3 years
  • DALI-2 Special for magnetic CC DT8 tunable white LED driver MT-600-D2D1
    Dimming Interface:  DALI
    Input Voltage:  48Vdc±5%(No polarity)
    Efficiency (Typ): 92%
    Fluctuation Level: No video flicker / High frequency exemption level.
    Output Voltage: 10~42Vdc
    Output Current: 350~600mA
    Output Power: 3.5W~25.2W (Default is 25.2W)
    Dimming Range: 0~100%,down to 0.1%
    Certification: CE,ROHS,FCC
    Warranty: 5 years

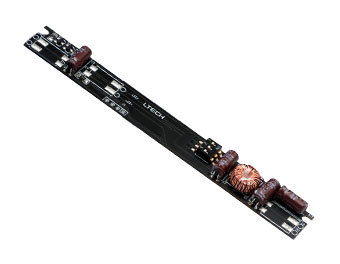

  • DALI Special for magnetic CC LED driver MT-350-700-D1D1
    Dimming Interface: DALI
    Input Voltage: 48Vdc±5% (Not polarity)
    Efficiency: 95%
    Fluctuation Level: No video flicker / High frequency exemption level.
    Output Voltage: 10~42Vdc
    Output Current: 350-700mA
    Output Power: 3.5W-29.4W
    Dimming Range: 0~100%,dimming depth 1%
    Certification: CE,ROHS,FCC
    Warranty: 5 years
    Sec. output:
    Pout(Max.) Vout(DC) Constant(DC)
    3.5-14W 10-40V 350mA
    4-16W 10-40V 400mA
    4.5-18W 10-40V 450mA
    5-20W 10-40V 500mA
    5.5-22W 10-40V 550mA
    6-24W 10-40V 600mA
    6.5-26W 10-40V 650mA
    7-28W 10-40V 700mA
  • DALI Special for magnetic CC LED driver MT-100-400-D1D1
    Dimming Interface: DALI
    Input Voltage: 48Vdc±5% (Not polarity)
    Efficiency: 95%
    Fluctuation Level: No video flicker / High frequency exemption level.
    Output Voltage: 10~42Vdc
    Output Current: 100-400mA
    Output Power: 1W-16.8W
    Dimming Range: 0~100%,dimming depth 1%
    Certification: CE,ROHS,FCC
    Warranty: 5 years
    Sec. output:
    Pout(Max.) Vout(DC) Constant(DC)
    1-4W 10-40V 100mA
    1.5-6W 10-40V 150mA
    2-8W 10-40V 200mA
    2.5-10W 10-40V 250mA
    3-12W 10-40V 300mA
    3.5-14W 10-40V 350mA
    4-16W 10-40V 400mA
  • Total 1 Page 20 Records
