about ltech

LTECH & Tuya work collectively together to develop "Tuya Bluetooth Driver" for intelligent IoT commercial lighting market. It adopts Bluetooth Mesh Ad-hoc Network and Tuya application protocol with high networking capability which are reliable and stable. Meanwhile, it applies LTECH original super depth digital dimming technology T-PWM that allows continuous and flicker-free images with high-speed shooting. Its soft-on and fade-in function aligns with Human-centric Lighting requirements which greatly enhances visual comfort. Multiple CV&CC drivers are available and meet various applications for different light fixtures.

Tuya Zigbee Driver
  • 75W 24V Tuya Zigbee CV Dimmable LED driver TY-75-24-G1Z2
    Rubycon capacitor
    Dimming Interface: Zigbee
    DC Voltage Range:  220-280Vdc
    AC Voltage Range:  198-264Vac
    Rated Voltage:  220-240Vac
    Power Factor: PF>0.97/230Vac (at full load)
    Efficiency (typ.): >92%
    Strobe Level: High frequency exemption level
    Output Voltage: 24Vdc
    Output Current: Max. 3.125A
    Output Power: 0~75W
    Dimming Range: 0~100%, down to 0.1%
    Certification: CCC,TUV,CB,RCM,CE,UACK
    Warranty: 5 years
  • 75W 24V Tuya Zigbee CV tunable white LED driver TY-75-24-G2Z2
    Rubycon capacitor
    Dimming Interface: Zigbee
    DC Voltage Range:  220-280Vdc
    AC Voltage Range:  198-264Vac
    Rated Voltage:  220-240Vac
    Power Factor: PF>0.97/230Vac (at full load)
    Efficiency (typ.): >92%
    Strobe Level: High frequency exemption level
    Output Voltage: 24Vdc
    Output Current: Max. 3.125A
    Output Power: 0~75W
    Dimming Range: 0~100%, down to 0.1%
    Certification: CCC,TUV,CB,CE,UKCA,RCM
    Warranty: 5 years

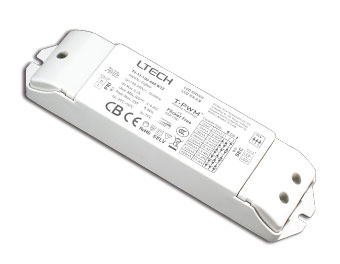

  • 12W 100-400mA Tuya Zigbee CC Dimmable LED driver TY-12-100-400-W1Z
    Rubycon capacitor
    Dimming Interface: Zigbee
    DC Voltage Range:  120-300Vdc
    AC Voltage Range:  100-240Vac
    Power Factor: PF≥0.95/115Vac, PF≥0.85/230Vac (at full load)
    Efficiency (typ.): 80%
    Strobe Level: High frequency exemption level
    Output Voltage: 10-42Vdc
    Output Current: 100-400mA
    Output Power: 0~12W
    Dimming Range: 0~100%, down to 0.1%
    Certification: CCC,TUV,CB,CE,KC,EAC,RCM,EMEC
    Warranty: 5 years
  • 20W 250-1000mA Tuya Zigbee CC tunable white LED driver TY-20-250-1000-W2Z2
    Rubycon capacitor
    Dimming Interface: Zigbee
    DC Voltage Range:  120-300Vdc
    AC Voltage Range:  100-240Vac
    Power Factor: PF≥0.95/115Vac, PF≥0.90/230Vac (at full load)
    Efficiency (typ.): 83%
    Strobe Level: High frequency exemption level
    Output Voltage: 9-54Vdc
    Output Current: 250-1000mA
    Output Power: 0~20W
    Dimming Range: 0~100%, down to 0.1%
    Certification: CCC,TUV,CB,CE,KC,EAC,RCM,EMEC
    Warranty: 5 years

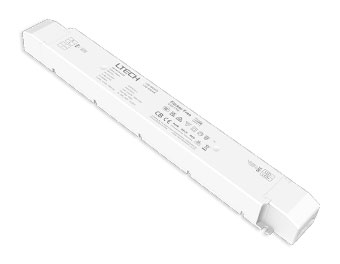

  • 150W 24V Tuya Zigbee CV Dimmable LED driver TY-150-24-G1Z2
    Rubycon capacitor
    Dimming Interface: Zigbee
    DC Voltage Range:  200-280Vdc
    AC Voltage Range:  220-240Vac
    Power Factor: PF>0.98/230Vac (at full load)
    Efficiency (typ.): 93%
    Strobe Level: High frequency exemption level
    Output Voltage: 24Vdc
    Output Current: Max. 6.25A
    Output Power: 0~150W
    Dimming Range: 0~100%, down to 0.1%
    Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC
    Warranty: 5 years
  • 150W 24V Tuya Zigbee CV tunable white LED driver TY-150-24-G2Z2
    Rubycon capacitor
    Dimming Interface: Zigbee
    DC Voltage Range:  200-280Vdc
    AC Voltage Range:  220-240Vac
    Power Factor: PF>0.98/230Vac (at full load)
    Efficiency (typ.): 93%
    Strobe Level: High frequency exemption level
    Output Voltage: 24Vdc
    Output Current: Max. 6.25A
    Output Power: 0~150W
    Dimming Range: 0~100%, down to 0.1%
    Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC
    Warranty: 5 years
  • Tuya zigbee Special for magnetic CC tunable white LED driver TY-300-D2Z1
    Dimming Interface:  Zigbee
    Input Voltage:  48Vdc±5% (No polarity)
    Input Current:  <0.28A
    Efficiency(Typ): 94%
    Output Voltage: 10~42Vdc (Default is 36 Vdc and it can be set to another voltage based on customers’ lights.)
    Output Current: 100~300mA (Default is 300mA and it can be set to another voltage based on customers’ lights.)
    Output Power: 1W~12.6W (Default is 12.6W)
    Current Accuracy: +15mA/-25mA
    Standby Power: <0.5W
    Dimming Range: 0~100%, down to 0.1%
    Certification: CE,ROHS
    Warranty: 5 years
  • Tuya zigbee Special for magnetic CC tunable white LED driver TY-600-D2Z1
    Dimming Interface:  Zigbee
    Input Voltage:  48Vdc±5% (No polarity)
    Input Current:  <0.57A
    Efficiency(Typ): 92%
    Output Voltage: 10~42Vdc (Default is 36 Vdc and it can be set to another voltage based on customers’ lights.)
    Output Current: 350~600mA (Default is 600mA and it can be set to another voltage based on customers’ lights.)
    Output Power: 3.5W~25.2W (Default is 25.2W)
    Current Accuracy: ±5%
    Standby Power: <0.5W
    Dimming Range: 0~100%, down to 0.1%
    Certification: CE,ROHS
    Warranty: 5 years
  • Total 1 Page 8 Records
