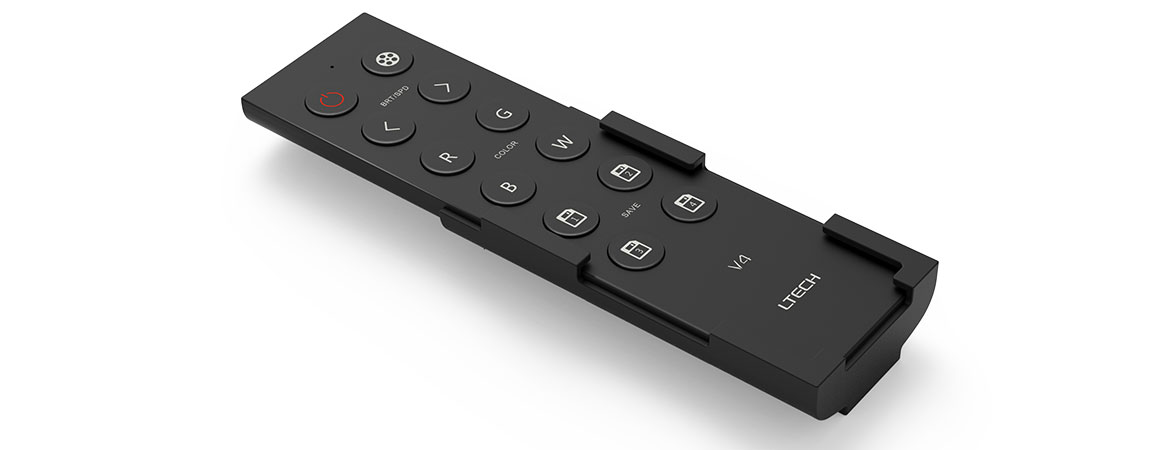

V4 Remote Control |
|
| Working voltage | DC3V(Battery CR2032 ) |
| Working Frequency | RF 2.4G |
| Remote Distance | 30m(max) |
| Working Temp. | -20℃～60℃ |

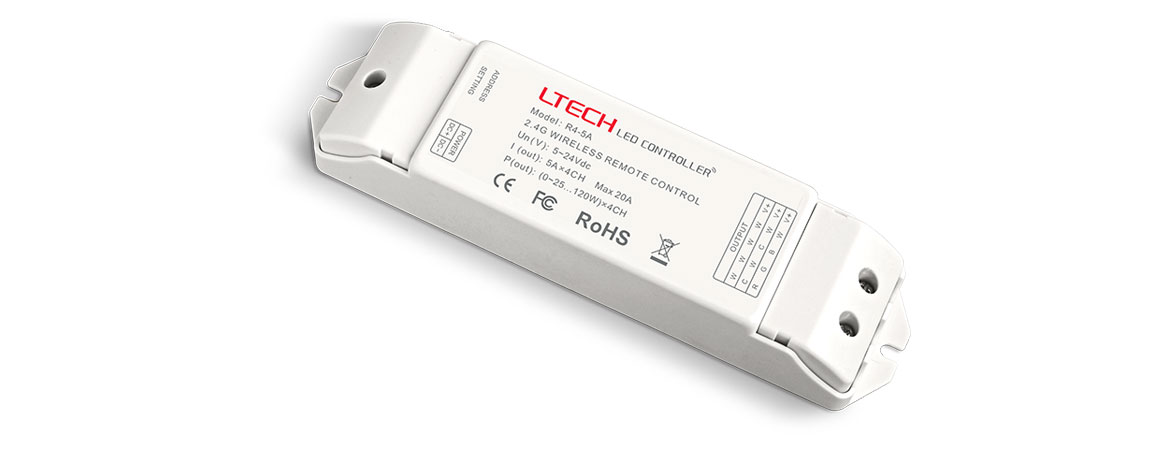

R4-5A CV Zone Receiving controller |
||
| Working Frequency | 2.4GHz |
 |
| Input voltage | DC5V~DC24V | |
| Max current load | 5A x4CH Max 20A | |
| Max output power | 100W/240W/480W(5V/12V/24V) | |
| Remote Distance | 50m (Distance of cross-eyed) | |
| Working temperature | -30℃～55℃ | |
| Dimensions | L175×W44×H30mm | |
| Package size | L178×W48×H33mm | |
| Weight (G.W.) | 150g | |

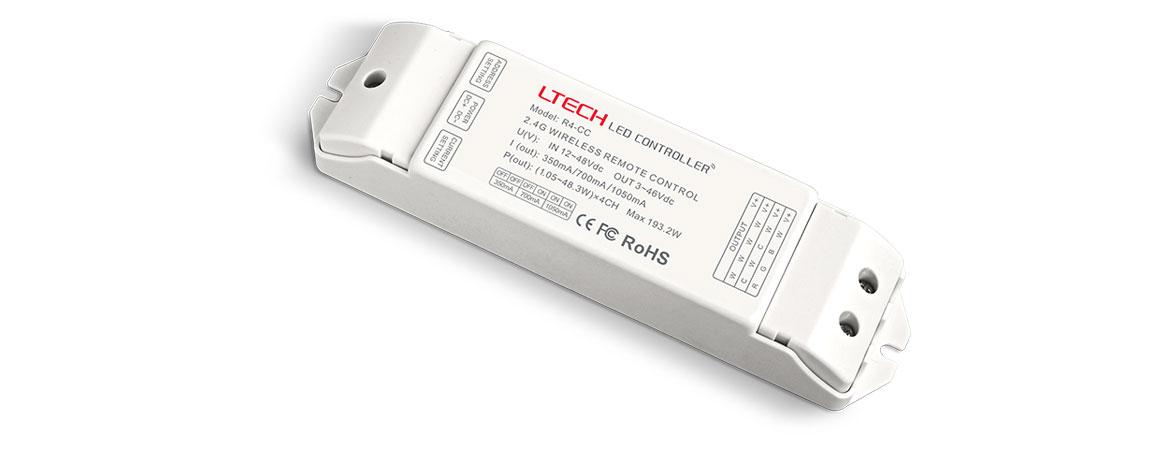

R4-CC CC Zone Receiving controller |
||
| Working Frequency | 2.4GHz |
|
| Input voltage | DC12V~DC48V | |
| Output voltage | DC3V~46V | |
| Output current | CC 350/700/1050mA×4CH(3 in 1) | |
| Output power | 1.05W-48.3W×4CH Max 193.2W | |
| Remote Distance | 50m (Distance of cross-eyed) | |
| Working temperature | -30℃～55℃ | |
| Dimensions | L175×W44×H30mm | |
| Package size | L178×W48×H33mm | |
| Weight (G.W.) | 165g | |
