RGB Controller LT-3800-6A

  • Description
  • Video
  • Download
Brief introduction

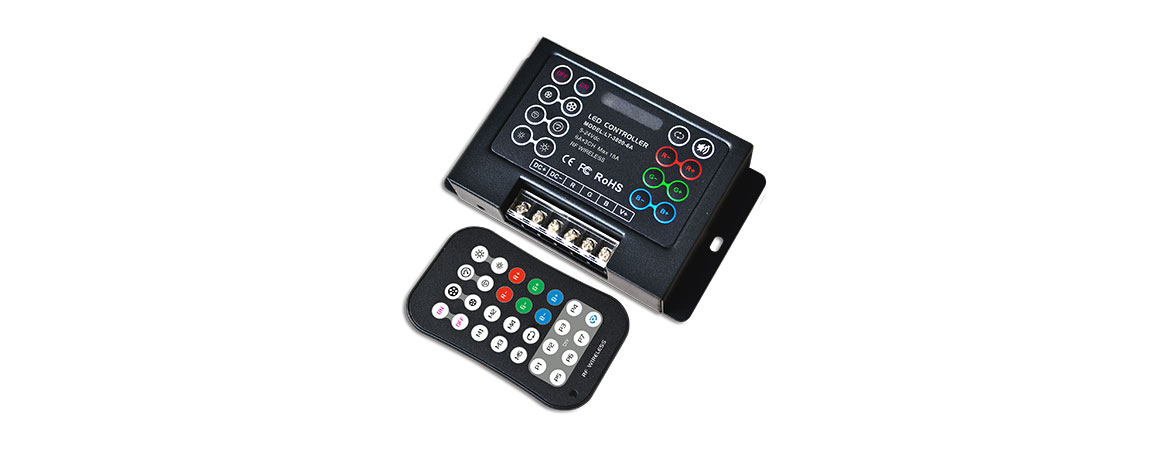

LT-3800-6A RGB controller is a unique DIY version as well as a powerful combination that can control color changes of LED lights with 4-pin 3-channels (Common anode), built-in 29 modes, with touch functional buttons, provided with RF wireless remote control, users can control color changes of LED light by pressing the button on the controller or on the remote control panel, very users friendly.

Each function is optimized, using more humanization. Key to join new concept programming function, users only need 10 seconds can program DIY new changes effect easily! Greatly increase the value in using the controller.

Performance Features
  • ● Built-in 29 modes.
  • ● RGB per channel 4096 grey level; delicate, soft and flicker-free colorful gradients.
  • ● Adjustable brightness & speed with the suspension function.
  • ● Key to join new concept programming function, users only need 10 seconds can program DIY new   changes effect and color easily!



Product parameter

LT-3800-6A RGB Controller
Input voltage DC5V~DC24V
Max current load 6A ×3CH Max 18A
Max output power 90W/216W/432W(5V/12V/24V)
Function Mode 29 Modes
Scale levels >4096 steps per RGB
Static dimming 16 Steps per RGB
working temperature -30℃～65℃
Dimension L146×W90×H31mm
Package Size L160×W130×H45mm
Weight (G.W) 470g
