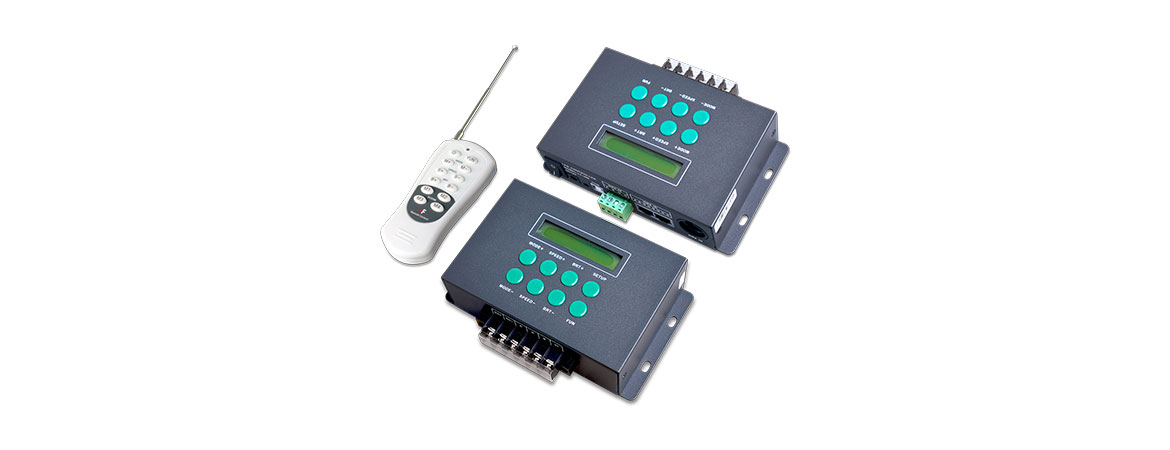

3CH RGB/DMX Controller LT-300

  • Description
  • Video
  • Download
Brief introduction

LT-300 RGB/DMX Controller with LCD screen, which is dedicated to control entire synchronous color changes of Led lights with 4-pin 3-loop cables (common anode), 36 optional modes, built-in a standard DMX512 decoder to receive universal DMX512 signal. It can work standalone or work with DMX512 devices to receive standard DMX512 signal. Also.

it can add power repeater to expand power unlimitedly if one controller is not enough to provide the power output.



Performance Features
  • ● Built-in a LCD screen, easy to set up parameters;
  • ● Built-in perpetual calendar, real-time display system clock, can be set up to play different programs in any time, Monday to Sunday or
  •    holiday.
  • ● 28 lighting modes, such as, single color brightness, color change, color smooth, and color strobe, etc.
  • ● Multilevel changing speed, brightness and RGB grey scale adjustment for your choices, 256 brightness levels per RGB(16.77 million
  •    static colors).
  • ● Feel free to define many changing modes into a step, 8 independent cycle steps maximum.
  • ● Support different input ports like standard XLR-3, RJ45 and Green terminals, etc.



Product parameter

  • LT-300 RGB/DMX Controller
    Input voltage DC12V~DC24V
    Max load current 8A/CH x3 Max 24A
    Max load power 288W/576W(12V/24V)
    Function mode 39 changing modes
    Output gray scale DMX mode: 256 levels/CH, RGB mode:1024 levels/CH
    DMX512 standard DM×512
    DMX512 Socket XLR-3, RJ45, Green terminal
    Remote control distance 100m
    working temperature -30℃~65℃
    Dimension L163×W108×H40mm
    Package Size L260×W132×H46mm
    Weight (G.W) 815g
