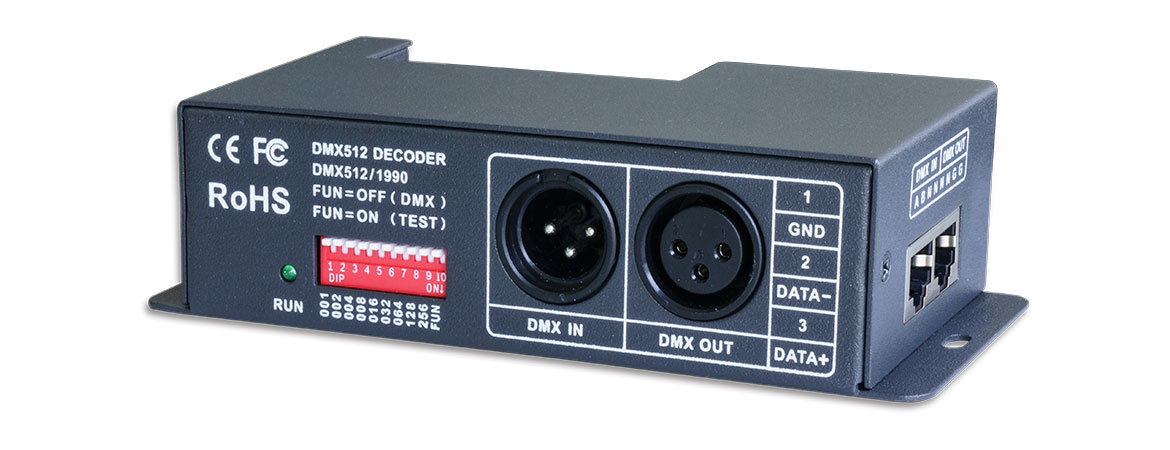

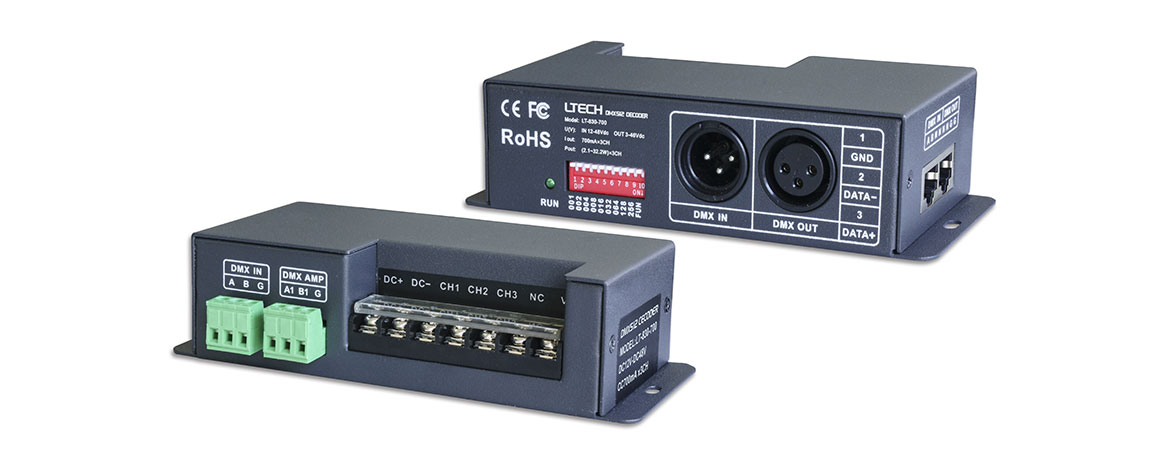

LT-830-700 3CH CC DMX-PWM Decoder |
|
| Input signal | DMX512 |
| Input power | DC12V～DC48V |
| Output voltage | DC3V~DC42V |
| Output current | 700mA CC ×3CH |
| Output power | 2.1W~29.4W ×3CH Max 88.2W |
| DMX512 socket | XLR-3, RJ45, Green terminal (with signal amplification function) |
| Dimming range | 0~100% |
| Working temperature | -30℃～65℃ |
| Dimension | L163×W78×H40mm |
| Package Size | L180×W82×H50mm |
| Weight (G.W) | 430g |
