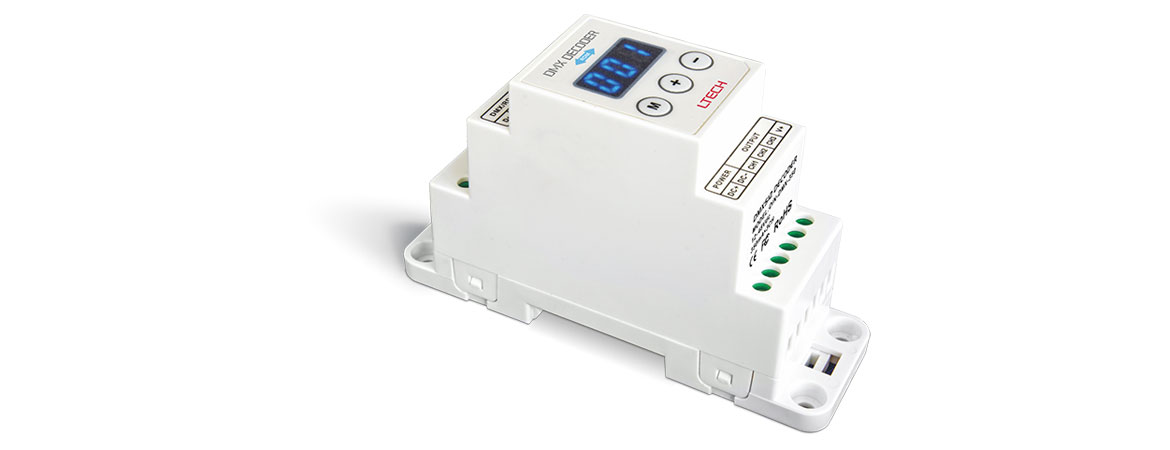

DIN-DMX-350 3CH CC Decoder |
|
| Input signal | DMX512, RDM |
| Input power | DC12V～DC48V |
| Output voltage | DC3V~DC42V |
| Output current | 350mA CC ×3CH |
| Output power | 1.05W~14.7W ×3CH Max 44.1W |
| Dimming range | 0~100% |
| Working temperature | -30℃～55℃ |
| Dimension | L112×W35×H67(mm) |
| Package Size | L114×W37×H70(mm) |
| Weight (G.W) | 135g |
