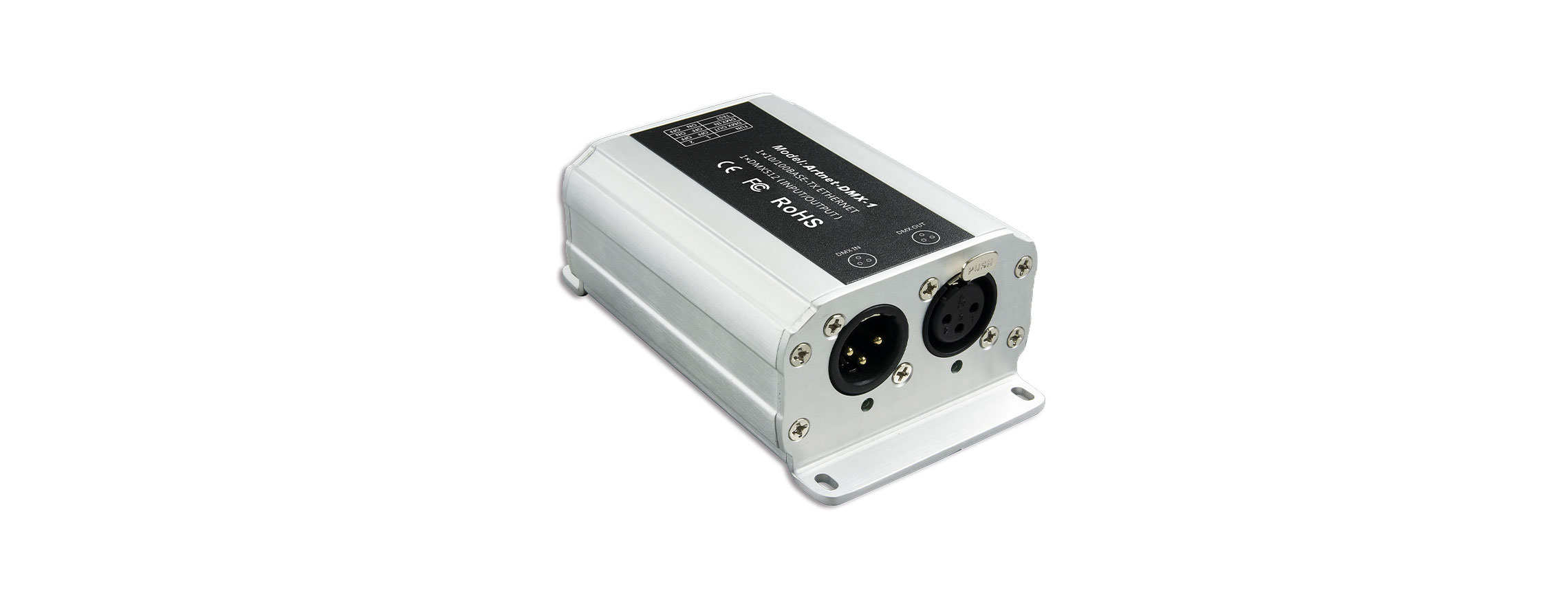

Artnet-DMX converter Artnet-DMX-1

  • Description
  • Video
  • Download
Brief introduction

Artnet-DMX converter is the Ethernet Control System based on the Artnet protocol, used to convert the Artnet network date package into DMX512 date, adopting high-speed ARM processor, stable and reliable working. Following Art-net standard protocol, it support RJ45 network interface and standard DMX512 output interface.

Artnet-DMX-1 can be configured in one of two ways: Artnet convert into DMX512, or DMX512 convert into Artnet. Artnet-DMX-2 has two standard DMX512 date output port, output 1024 data in total.

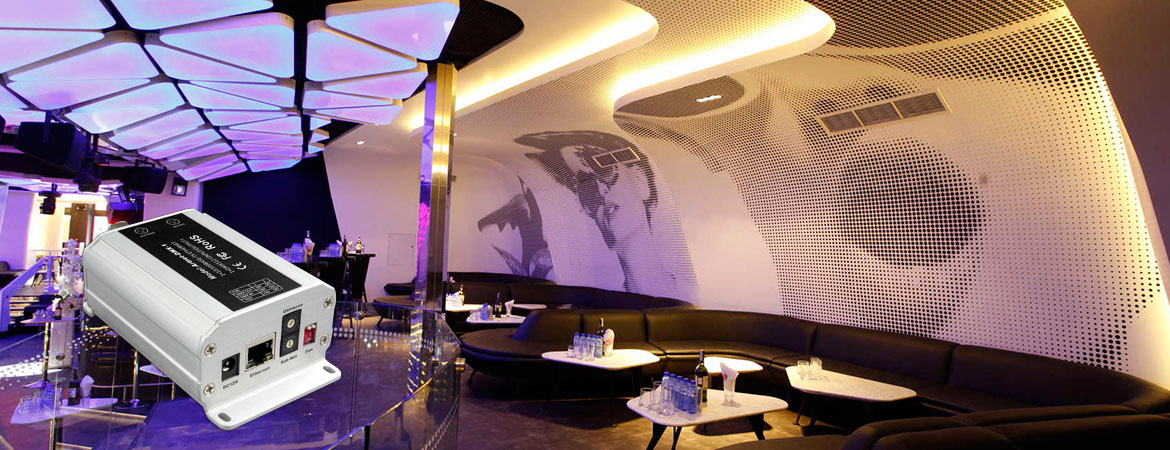

It is compatible with all the effects lighting control software which support Art-net protocol, widely used in the LED dot matrix and the stage lighting control network in needing lots of DMX-512 data, especially for TV station recorded scene, stage performances, entertainment and so on.

Performance Features
  • ● Based on Artnet protocol network data communication, accept network DMX data;
  • ● IP address is bound to Subnet, no need to reset, plug and play.
  • ● Artnet-DMX-1 could be configured for either Artnet-DMX512 type or DMX512- Artnet Type.
  • ● When configured for DMX -Artnet type. Data packets will be sent over the network by broadcast Mode.
  • ● Manage Artnet on broadcast mode or unicast mode.
  • ● One set DMX512 data-out for Artnet-DMX-1, two for Artnet-DMX-2.
  • ● Set different network segments to avoid multiple sets Artnet data interference.
  • ● Compatible with the light software based on Artnet Protocol, control stage lighting and LED lighting simultaneously.



Product parameter

Artnet-DMX-1 bidirectional converter 512 channels

Power input AC100-240V (with a power adaptor)
Input signal Artnet/DMX512
Output signal DMX512/Artnet
DMX channels 512 channels
working temperature -20℃~65℃
Dimension L120×W73×H45mm
Package Size L200×W80×H50mm
Weight (G.W) 290g

Artnet-DMX-2 1024 channels

Power input AC100-240V (with a power adaptor)
Input signal Artnet
Output signal DMX512
DMX channels 1024 channels
working temperature -20℃~65℃
Dimension L120×W73×H45mm
Package Size L200×W80×H50mm
Weight (G.W) 290g

Conjunction diagram
Conjunction diagram



Conjunction diagram
