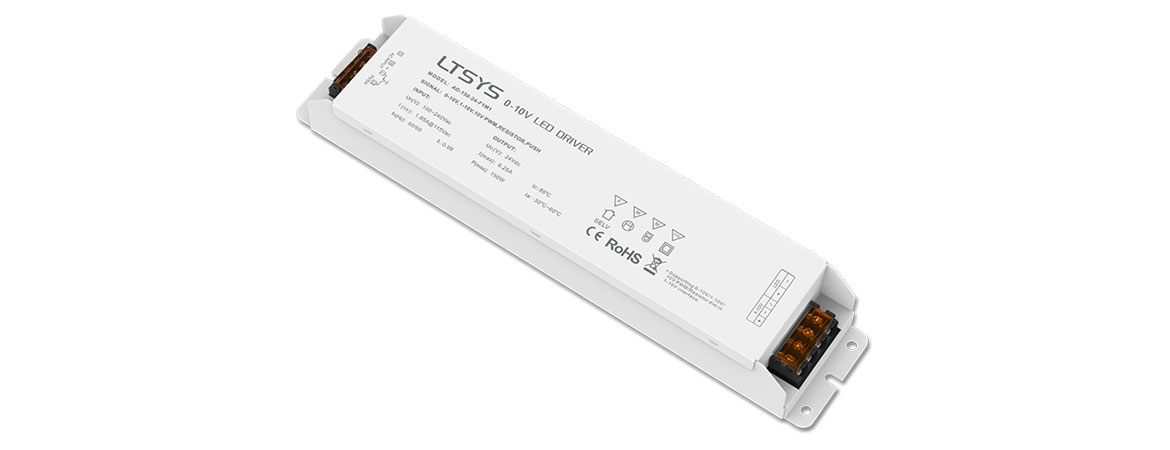

AD-150-24-F1M1 |
|
| Dimming interface: | 0-10V, 1-10V, 10VPWM OR PUSH DIM |
| Dimming range: | 0-100% |
| Input voltage: | 100-240VAC |
| Power factor: | >0.99 |
| Efficiency: | >93% |
| Output voltage: | 24VDC |
| Output power: | 150W |
| Output current: | 6.25A |
| Working temperature: | -30℃～60℃ |
| Dimension: | 270x55x36mm(LxWxH) |
| Package Size: | 272x57x38mm(LxWxH) |
| Weight (G.W) : | 580g |
